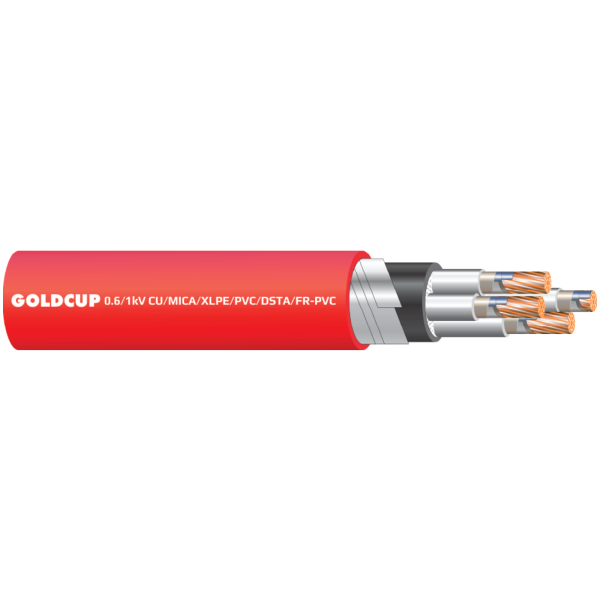

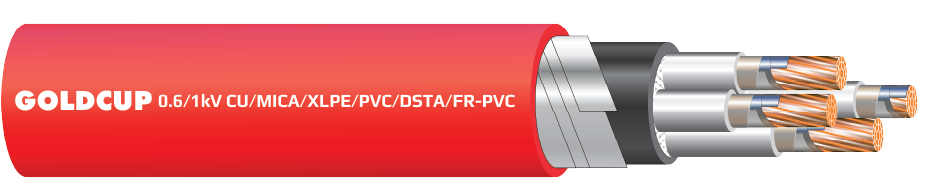

0.6/1 kV 2-, 3-, 4-Core Armoured Fire-Resistant Cable (Underground Cable) – Cu/Mica/XLPE/FR-PVC/DSTA/FR-PVC

Hotline

Description

01
02

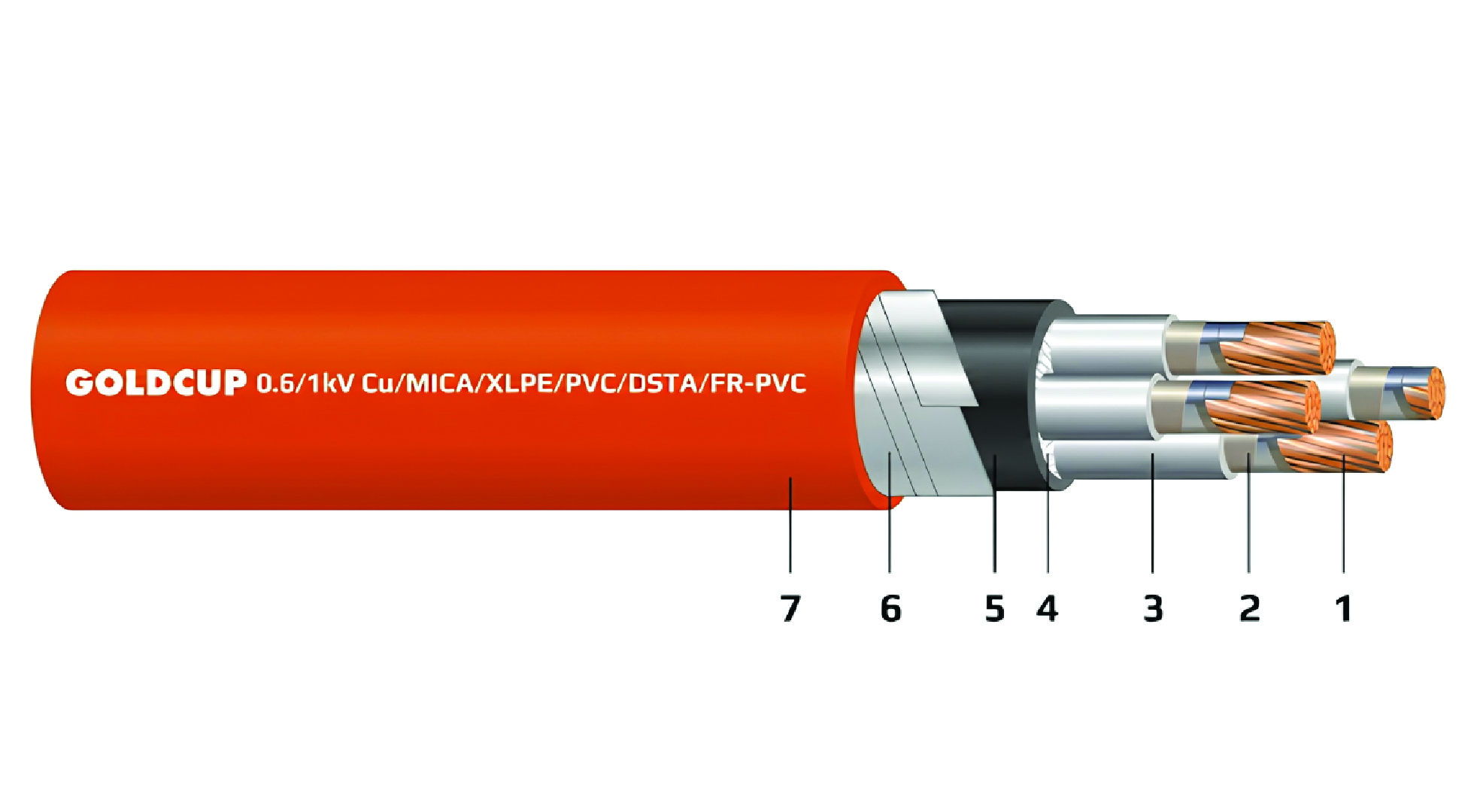

Caption
1/ Conductor:
Copper
2/ Fire Barrier Layer:
Mica Tape
3/ Insulation Layer:
XLPE
4/ Outer Sheath:
FR-PVC or LSHF
5/ Inner Sheath:
FR-PVC or LSHF
6/ Filler:
PP
7/ Armor Layer:
Double Steel Tape/DSTA
Specifications
Type:
Dây & cáp điện chống cháy
Technical Specification:
Cu/Mica/XLPE/PVC/DSTA/FR-PVC
Number of Cores:
2,3,4
Core Type:
Solid
Điện áp(V)
0.6/1 kV
Cross-section (mm2):
1.5; 2.5; 4; 6; 10; 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300
Applicable Standard:
IEC 60502-1, IEC 60331-21
01.

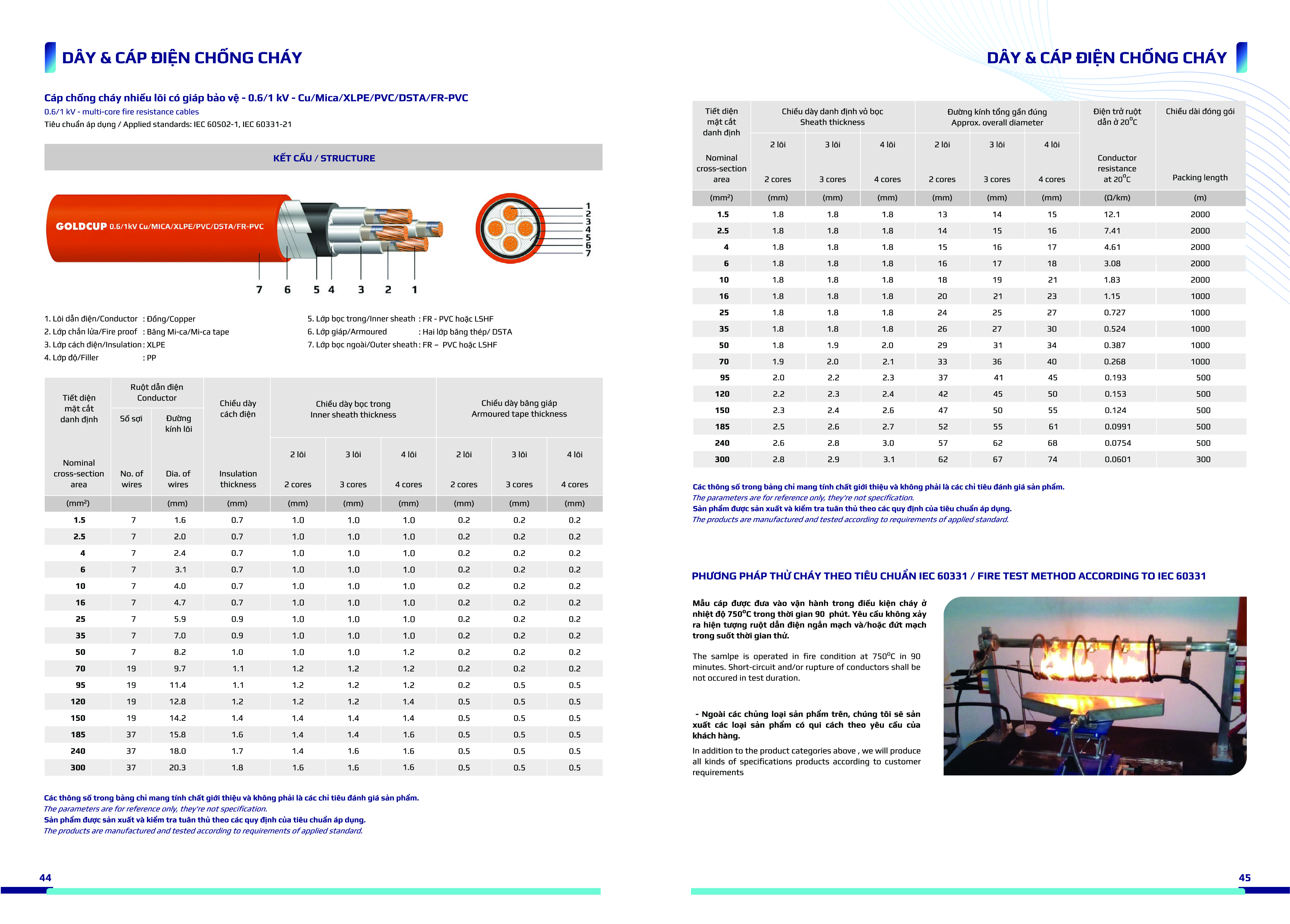

View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Armor Protection

Steel Tape Armor (DSTA)
Voltage (V)

0.6/1 kV
Conductor Material

Copper (Cu), Solid Core
Tiết diện

1.5, 10, 120, 150, 16, 185, 2.5, 240, 25, 300, 35, 4.0, 50, 6.0, 70, 95
Type

Băng mica, Fire-Resistant
Insulation Layer

LSHF, PE, PVC – FR
Number of Cores

2 cores, 3 cores, 4 cores
