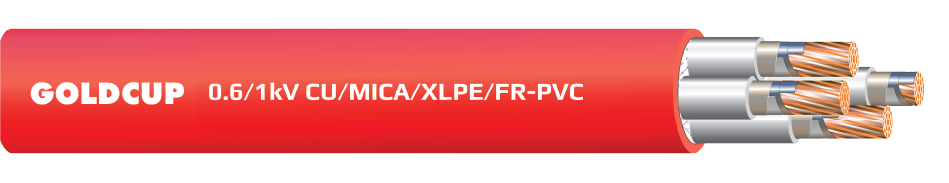

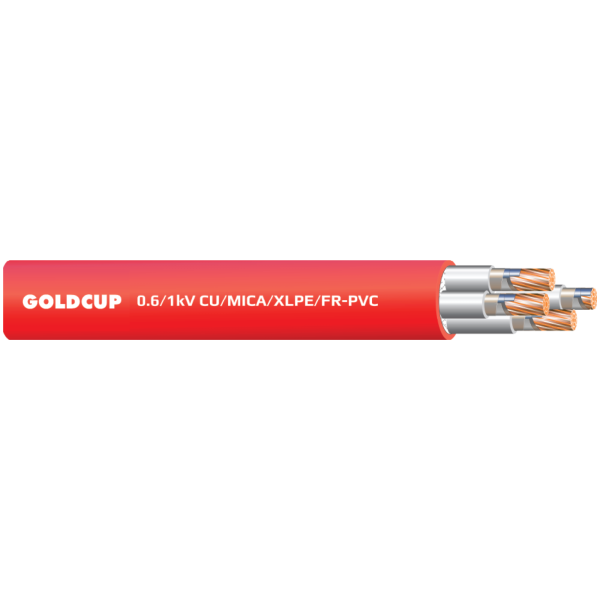

0.6/1 kV 2-, 3-, 4-Core Unarmoured Fire-Resistant Cable – Cu/Mica/XLPE/FR-PVC

Hotline

Description

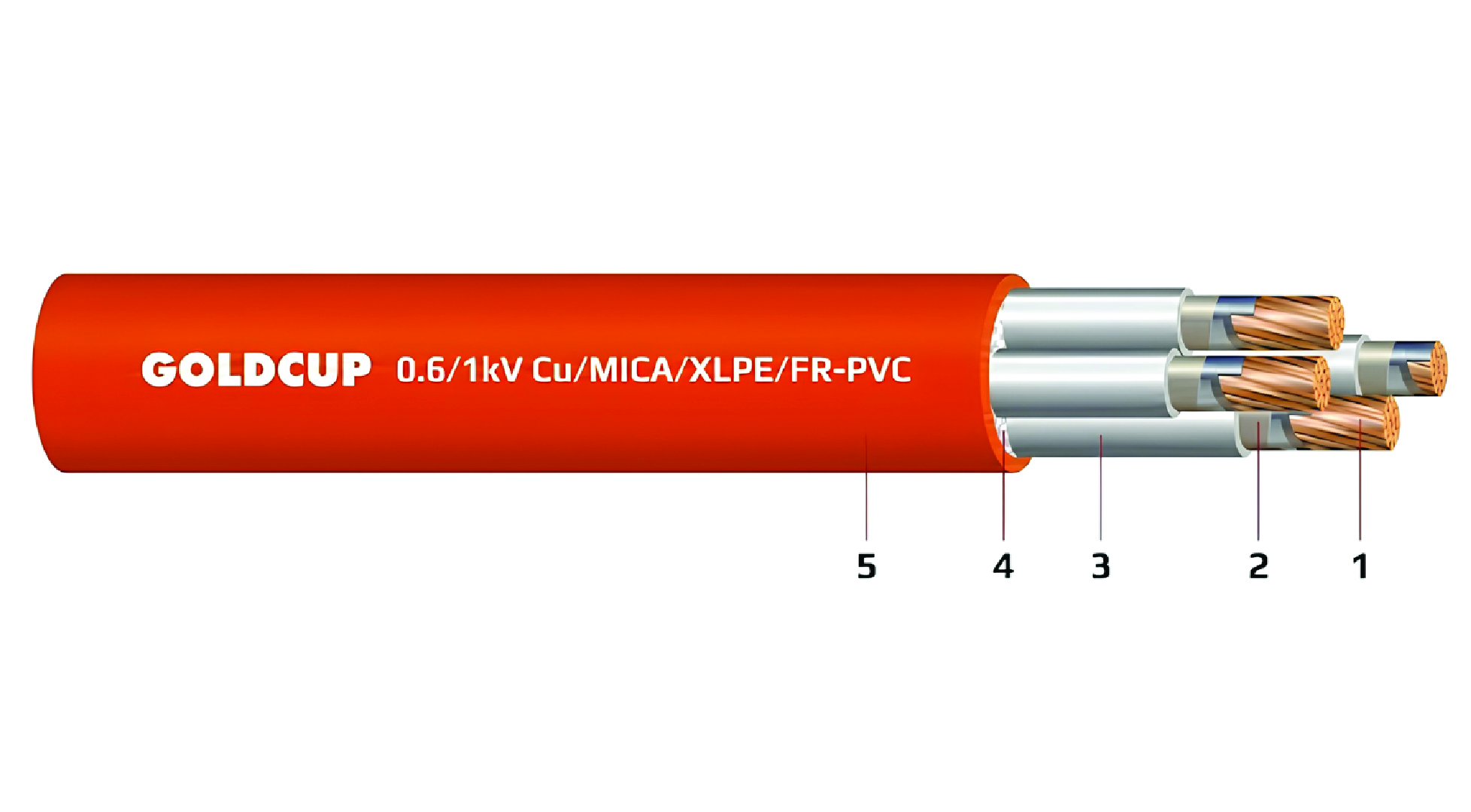

Caption

1/ Conductor:

Copper

2/ Fire Barrier Layer:

Mica Tape

3/ Insulation Layer:

XLPE

4/ Filler:

5/ Outer Sheath:

FR-PVC or LSHF

Specifications

Type:

Dây & cáp điện chống cháy

Technical Specification:

Cu/Mica/XLPE/FR-PVC

Number of Cores:

2,3,4

Core Type:

Solid

Điện áp(V)

0.6/1 kV

Cross-section (mm2):

1.5; 2.5; 4; 6; 10; 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300

Applicable Standard:

IEC 60502-1, IEC 60331-21

01.

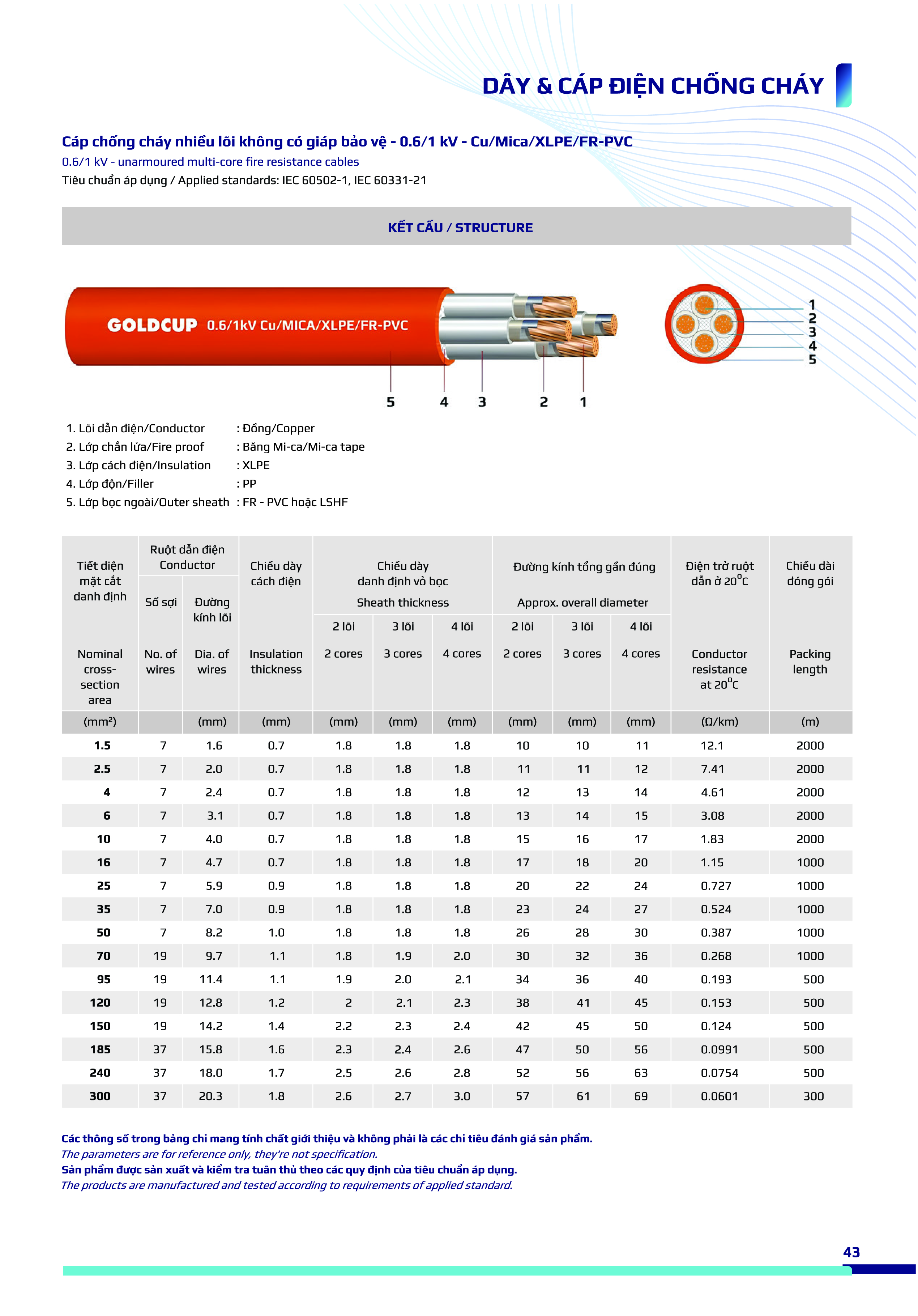

View detailed technical specifications (image)

02.

View Product Catalogue (PDF)

Additional information

Armor Protection	No Armor Protection
Voltage (V)	0.6/1 kV
Insulation Layer	LSHF, PP, PVC – FR
Number of Cores	2 cores, 3 cores, 4 cores
Conductor Material	Copper (Cu), Solid Core
Type	Băng mica, Fire-Resistant
Tiết diện	1.5, 10, 120, 150, 16, 185, 2.5, 240, 25, 300, 35, 4.0, 50, 6.0, 70, 95
