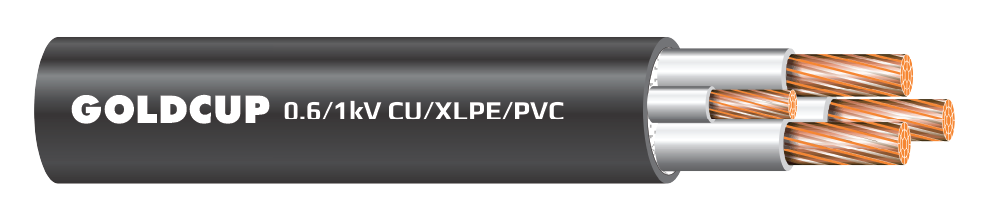

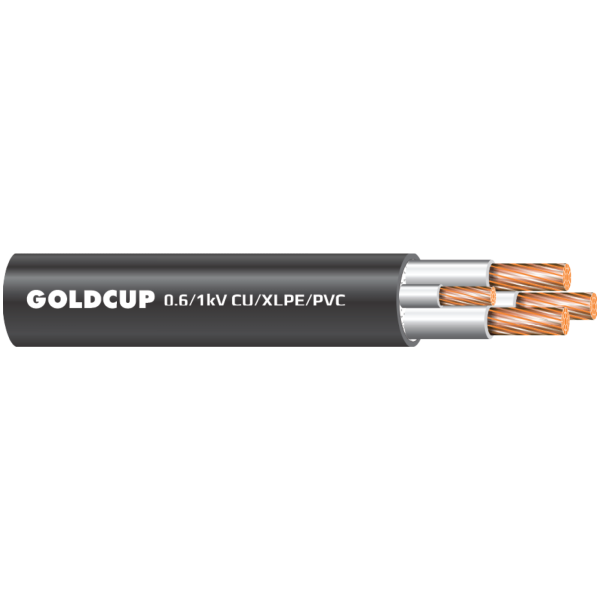

0.6/1 kV Four-Core Unarmoured Cable with Reduced Neutral Conductor – Cu/XLPE/PVC

Hotline

Description

01
02

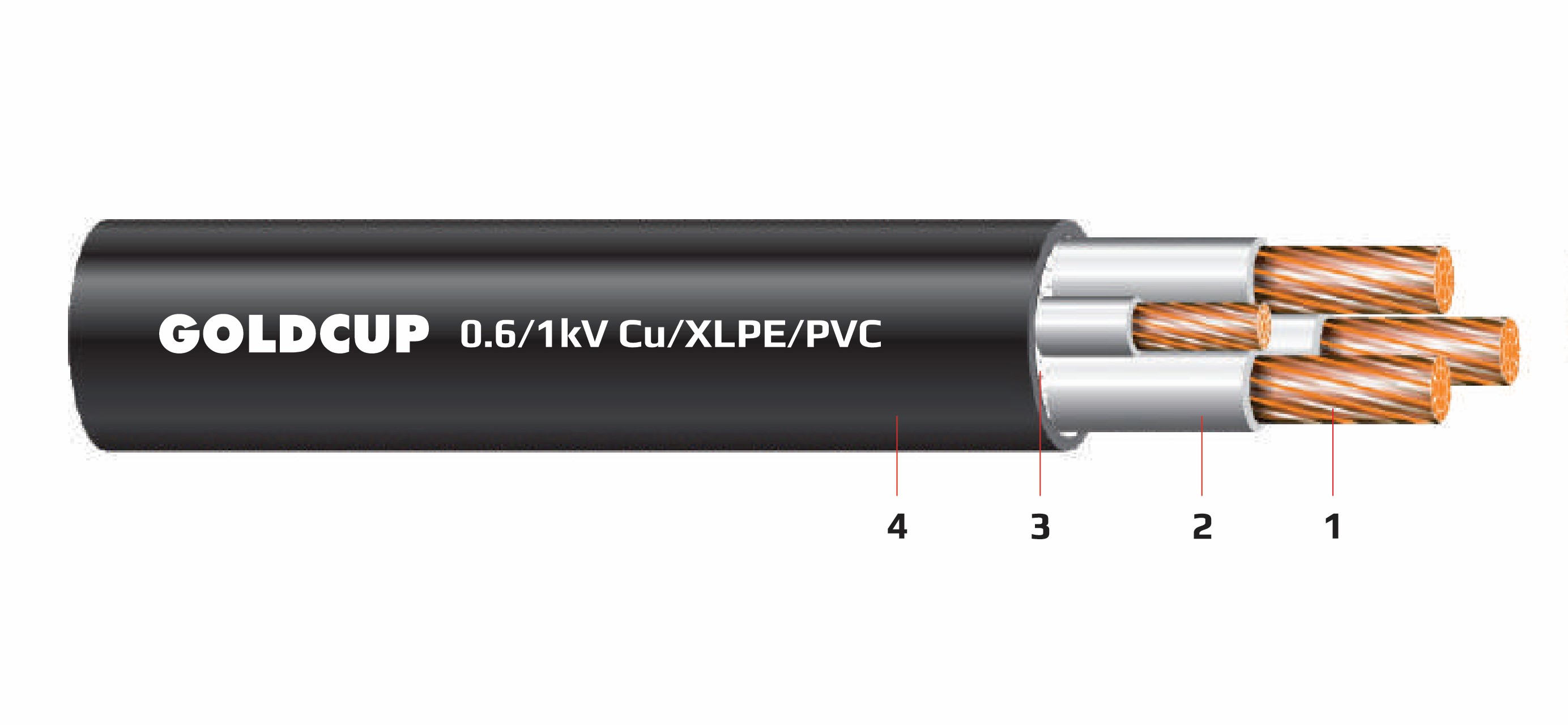

Caption
1/ Conductor:
Copper
2/ Insulation Layer:
XLPE
3/ Filler:
PVC/PP
4/ Outer Sheath:
PVC
Specifications
Type:
Power Cables
Technical Specification:
Cu/XLPE/PVC
Number of Cores:
3 + 1 smaller neutral hơn
Core Type:
Solid
Voltage (V):
0.6/1 kV
Cross-section (mm2):
1.5; 2.5; 4; 6; 10; 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300;
Applicable Standard:
TCVN 5935-1 (IEC 60502-1)
01.

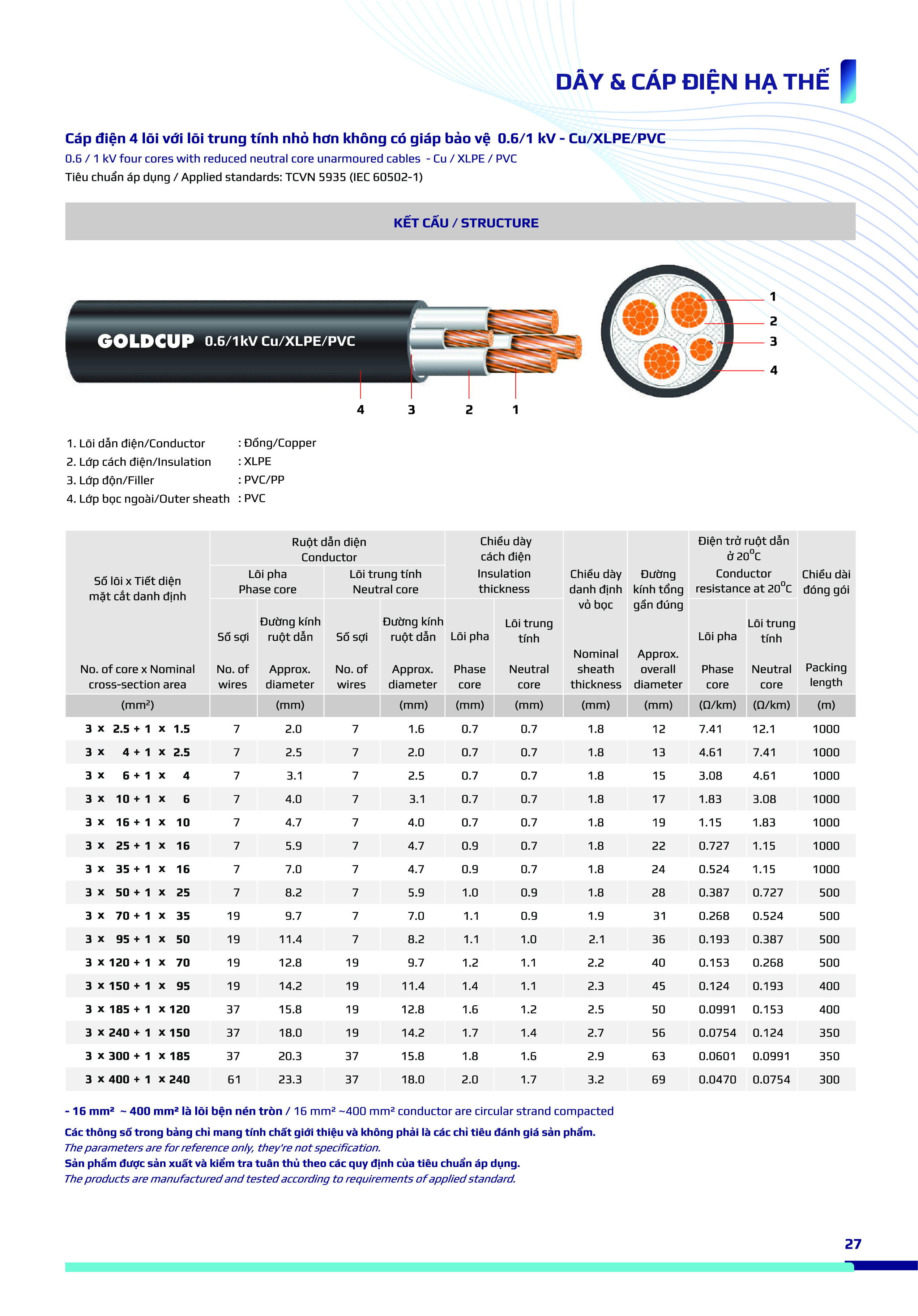

View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Armor Protection

No Armor Protection
Voltage (V)

0.6/1 kV
Insulation Layer

PVC, PVC/PP, XLPE
Number of Cores

3 cores + 1 smaller neutral core
Conductor Material

Copper (Cu), Solid Core
Type

Power Cables
Tiết diện

1.5, 10, 120, 150, 16, 185, 2.5, 240, 25, 300, 35, 4.0, 50, 6.0, 70, 95
