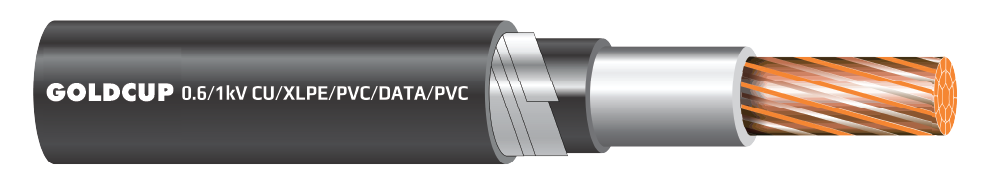

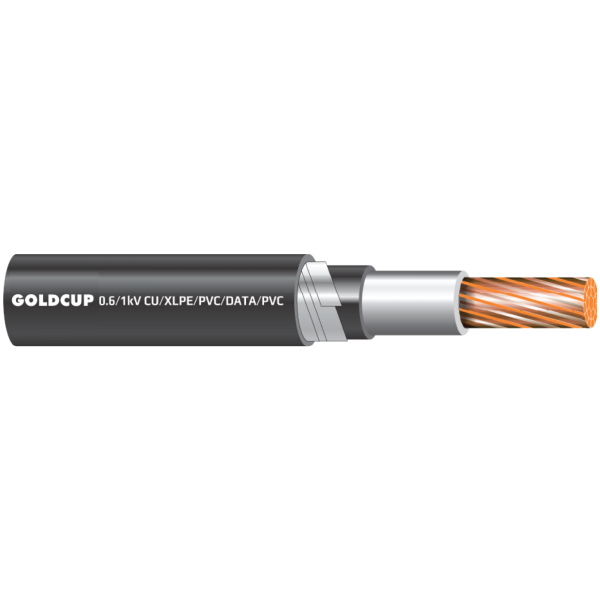

0.6/1 kV Single-Core Armoured Cable (Underground Cable) – Cu/XLPE/PVC/DATA/PVC

Hotline

Description

01
02
Caption
1/ Conductor:
Copper
2/ Inner Sheath:
PVC
3/ Insulation Layer:
XLPE
4/ Armor Layer:
Double Aluminium Tape/DATA
5/ Outer Sheath:
PVC
Specifications
Type:
Power Cables
Technical Specification:
Cu/XLPE/PVC/DATA/PVC
Number of Cores:
1
Core Type:
Solid
Voltage (V):
0.6/1 kV
Cross-section (mm2):
70; 95; 120; 150; 185; 240; 300; 400; 500; 630
Applicable Standard:
TCVN 5935-1 (IEC 60502-1)
01.

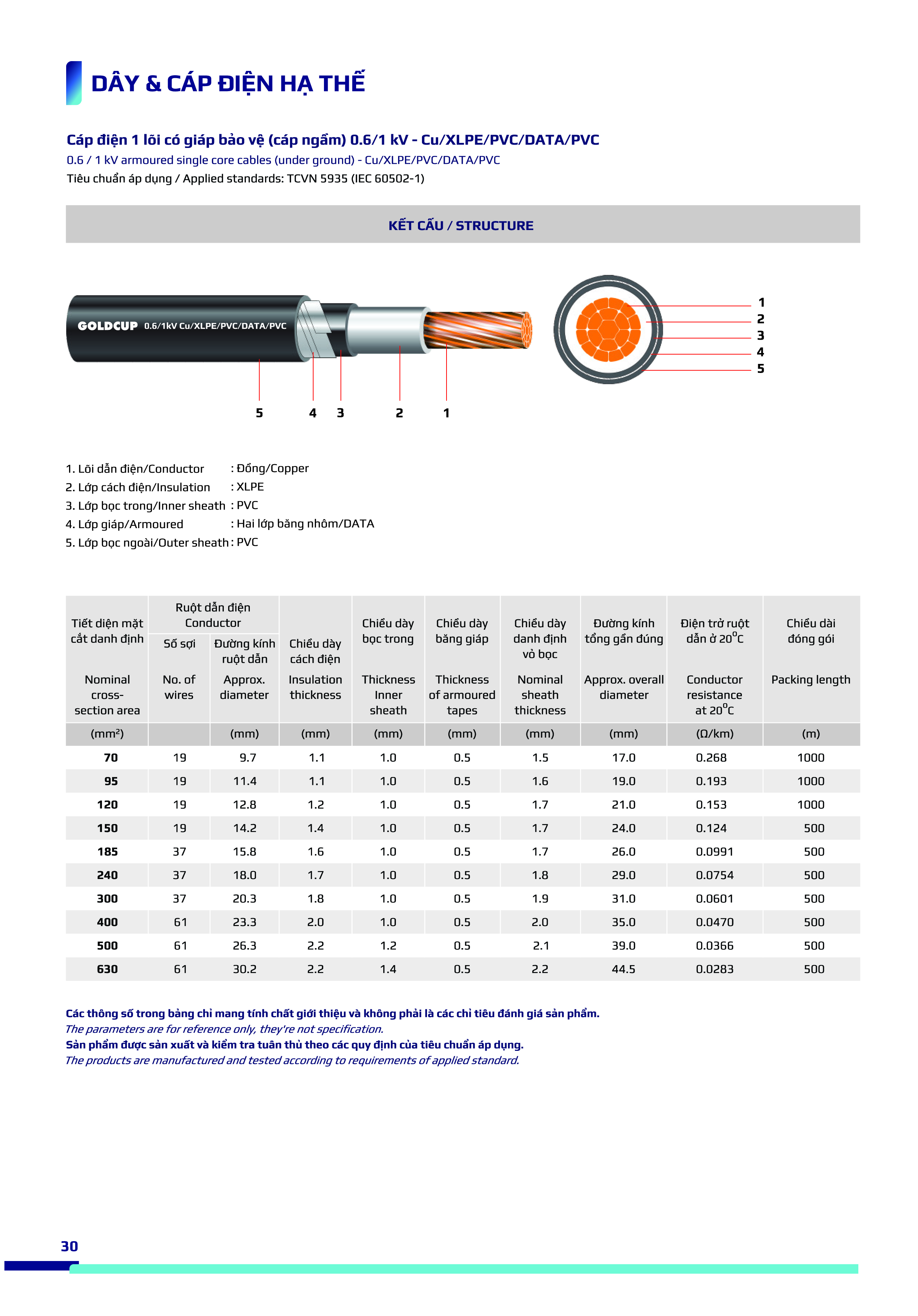

View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Armor Protection

Aluminium Tape Armor (DATA / ATA)
Voltage (V)

0.6/1 kV
Insulation Layer

PVC, XLPE
Number of Cores

1 core
Tiết diện

120, 185, 240, 300, 400, 500, 630, 70, 95
Type

Power Cables, With Metal Armor (Underground Cable)
Conductor Material

Aluminium (Al), Solid Core

Reviews

There are no reviews yet.

Be the first to review “0.6/1 kV Single-Core Armoured Cable (Underground Cable) – Cu/XLPE/PVC/DATA/PVC”
