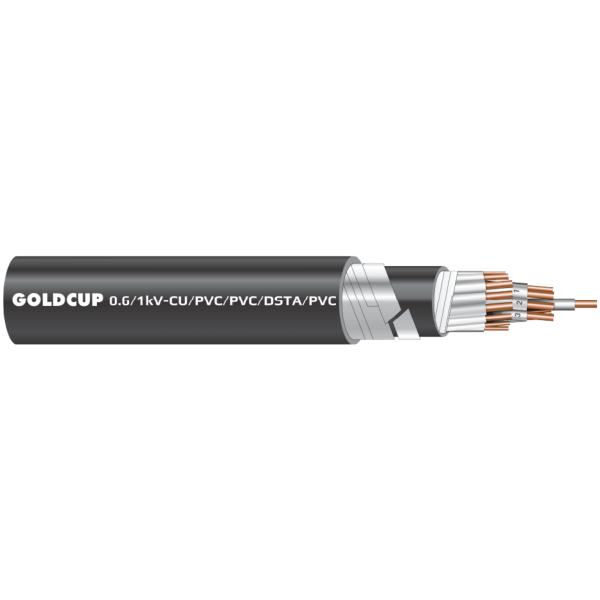

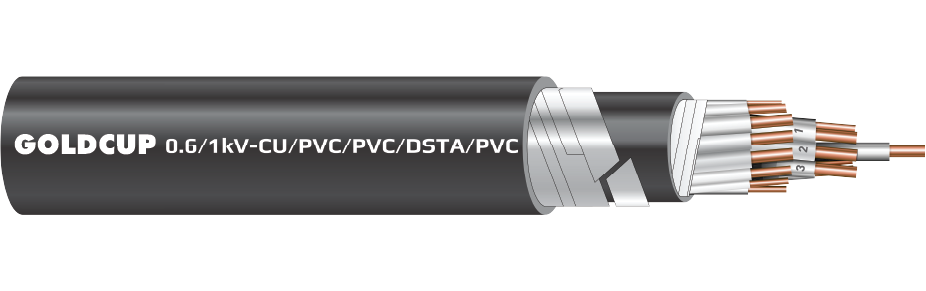

0.6/1 kV Control Cable with Armor Protection (Underground Cable) – Cu/PVC/PVC/DSTA/PVC

Hotline

Description

01
02
Caption
1/ Conductor:
Copper
2/ Insulation Layer:
PE
3/ Inner Sheath:
PVC
4/ Armor Layer:
Double Steel Tape/DSTA
5/ Outer Sheath:
PVC hoặc PE
Specifications
Type:
Cáp điều khiển & cáp thông tin tín hiệu
Technical Specification:
Cu/PVC/PVC/DSTA/PVC
Number of Cores:
5; 7; 12; 27; 48
Core Type:
Solid
Voltage (V):
0.6/1 kV
Cross-section (mm2):
1.5; 2.5; 4
Applicable Standard:
TCVN 5935 (IEC 60502-1)
01.

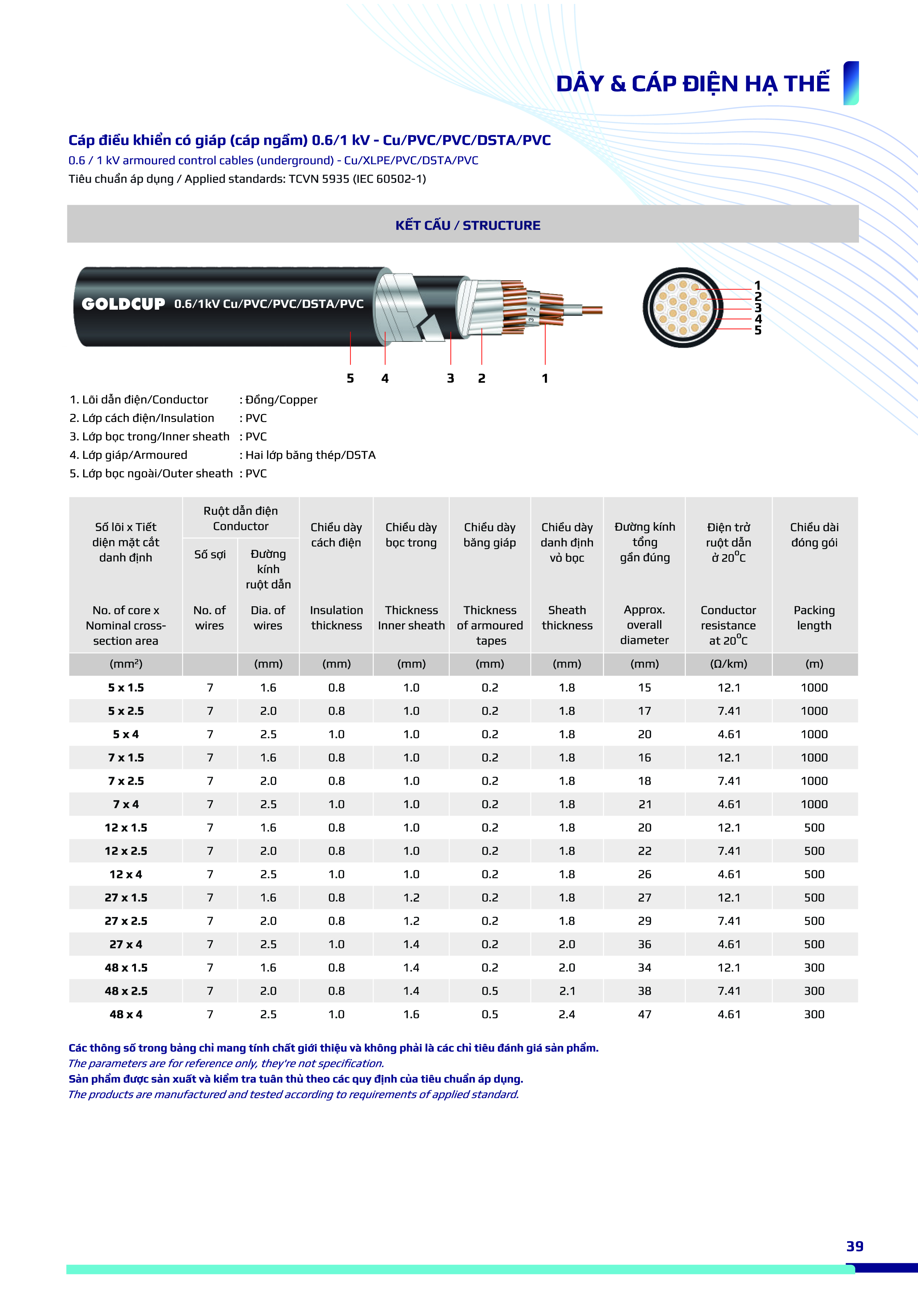

View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Armor Protection

Steel Tape Armor (DSTA)
Voltage (V)

0.6/1 kV
Insulation Layer

PVC
Number of Cores

>= 5 lõi
Tiết diện

1.5, 2.5, 4.0
Type

With Metal Armor (Underground Cable)
Conductor Material

Copper (Cu), Solid Core
