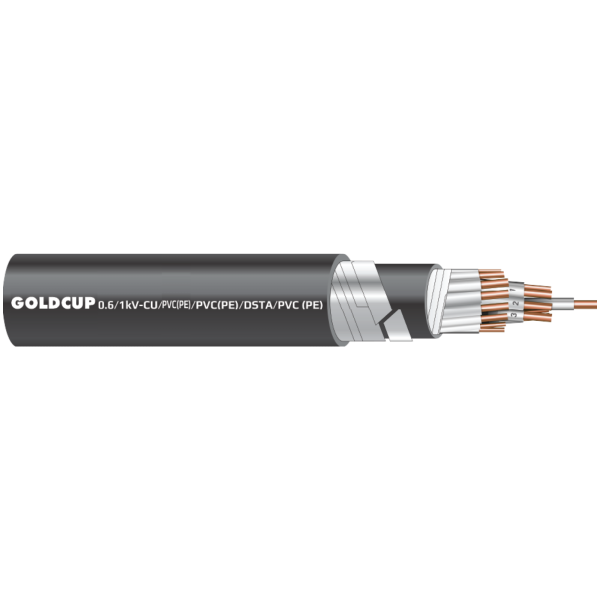

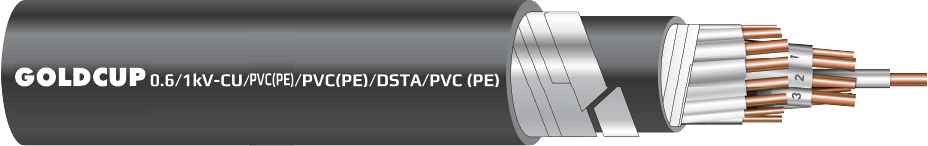

0.6/1 kV Signal Cable with Armor Protection (Underground Cable) – Cu/PE/PVC(PE)/DSTA/PVC(PE)

Hotline

Description

01
02
Caption
1/ Conductor:
Copper
2/ Insulation Layer:
PE
3/ Inner Sheath:
PVC
4/ Armor Layer:
Double Steel Tape/DSTA
5/ Outer Sheath:
PVC hoặc PE
Specifications
Type:
Cáp điều khiển & cáp thông tin tín hiệu
Technical Specification:
Cu/PE/PVC(PE)
Number of Cores:
3; 4; 5; 7; 9; 10; 12; 14; 16; 19; 24; 27; 48
Core Type:
Solid
Cross-section (mm2):
1
Applicable Standard:
TCCS 10: 2022/VNRA & TCKT CÁP THĐS
01.
View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Insulation Layer

PE, PVC
Number of Cores

>= 5 lõi, 3 cores, 4 cores
Tiết diện

1.0
Type

No Metal Armor (Overhead Cable)
Conductor Material

Copper (Cu), Flexible Core
