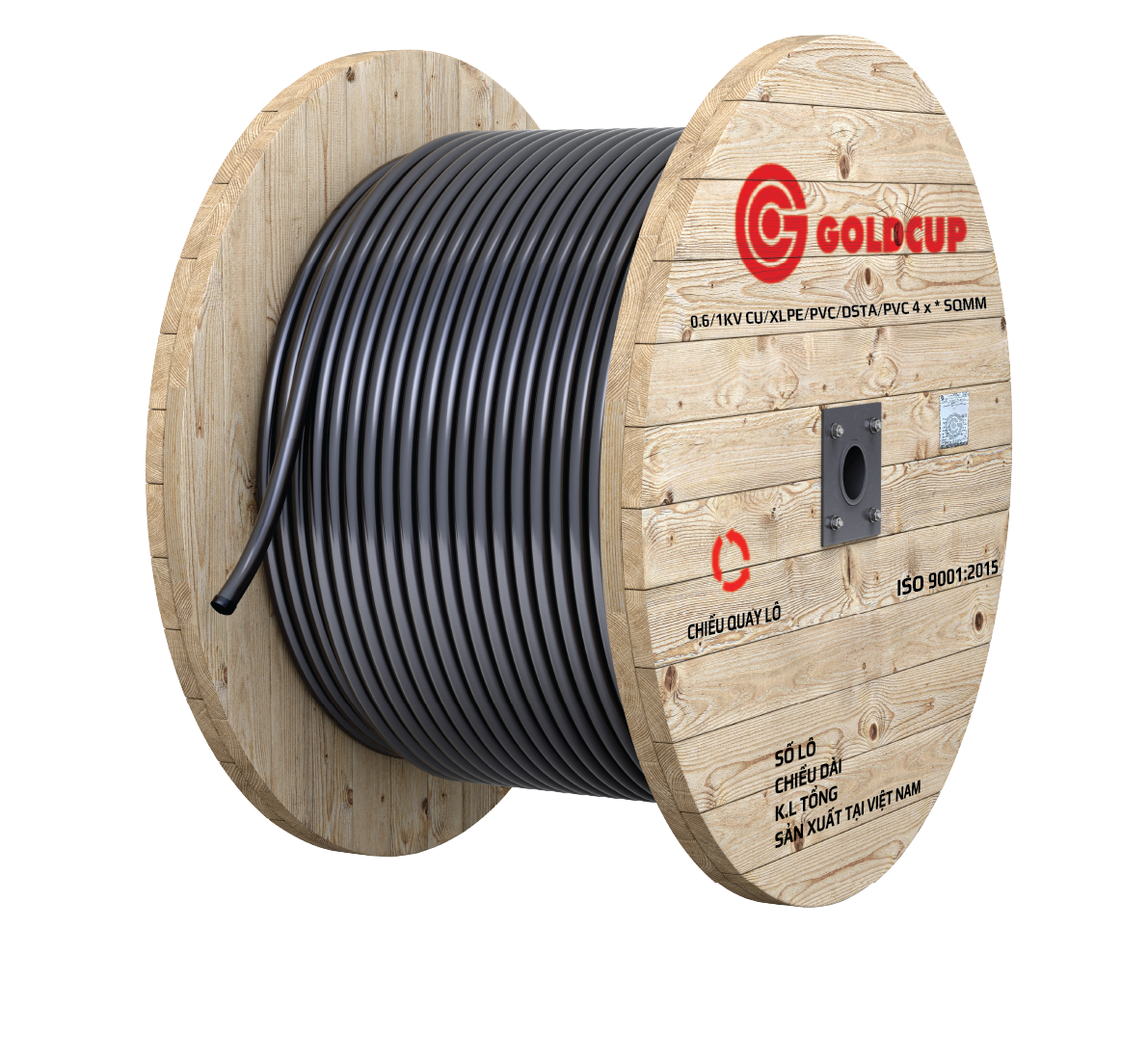

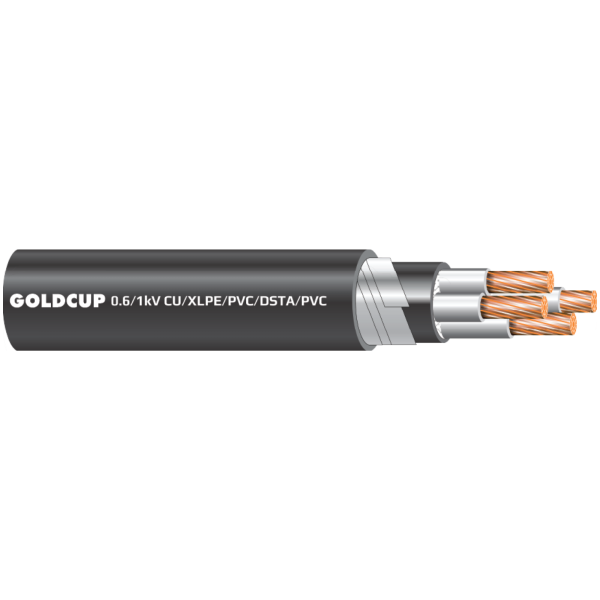

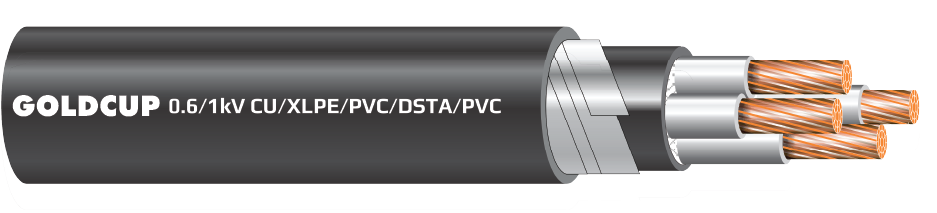

0.6/1 kV Four-Core Armoured Cable (Underground Cable) – Cu/XLPE/PVC/DSTA/PVC

Hotline

Description

01
02

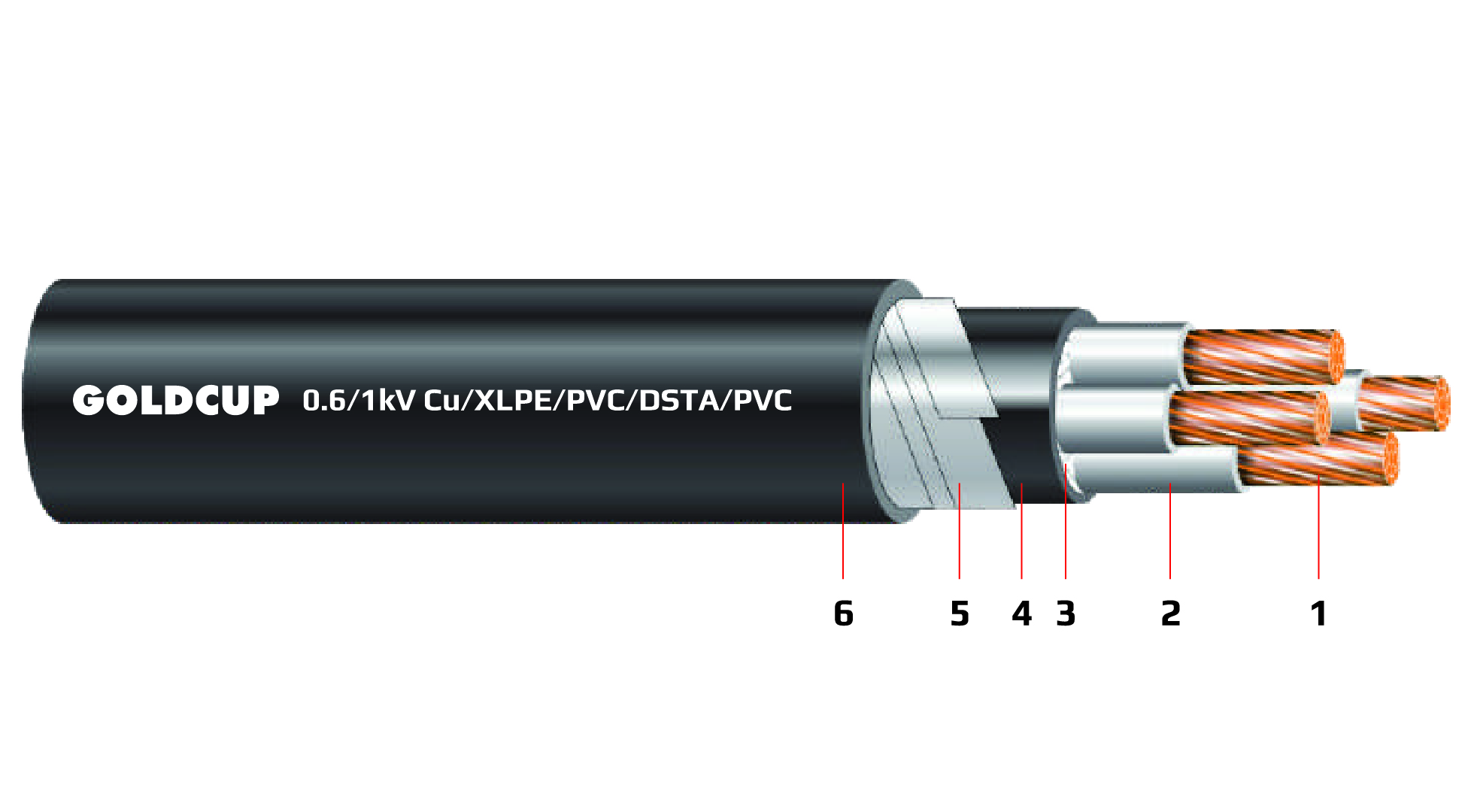

Caption
1/ Conductor:
Copper
2/ Inner Sheath:
PVC
3/ Insulation Layer:
XLPE
4/ Filler:
PP
5/ Outer Sheath:
PVC
6/ Armor Layer:
Double Steel Tape/DSTA
Specifications
Type:
Power Cables
Technical Specification:
Cu/XLPE/PVC/DSTA/PVC
Number of Cores:
4
Core Type:
Solid
Voltage (V):
0.6/1 kV
Cross-section (mm2):
1.5; 2.5; 4; 6; 10; 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300;400
Applicable Standard:
TCVN 5935-1 (IEC 60502-1)
01.

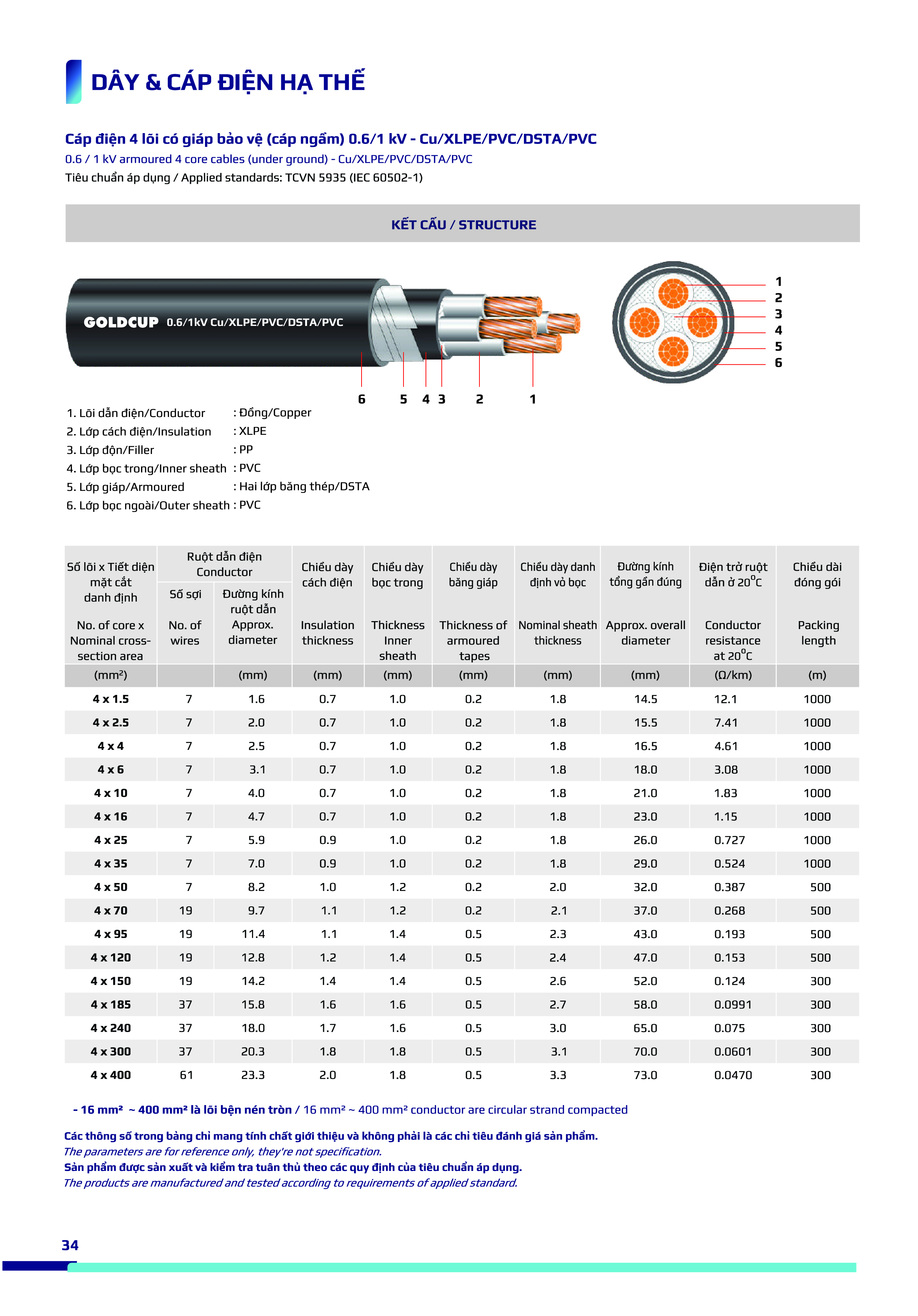

View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Armor Protection

Steel Tape Armor (DSTA)
Voltage (V)

0.6/1 kV
Insulation Layer

PP, PVC, XLPE
Number of Cores

4 cores
Tiết diện

1.5, 10, 120, 150, 16, 185, 2.5, 240, 25, 300, 35, 4.0, 400, 50, 6.0, 70, 95
Type

Power Cables, With Metal Armor (Underground Cable)
Conductor Material

Aluminium (Al), Solid Core
