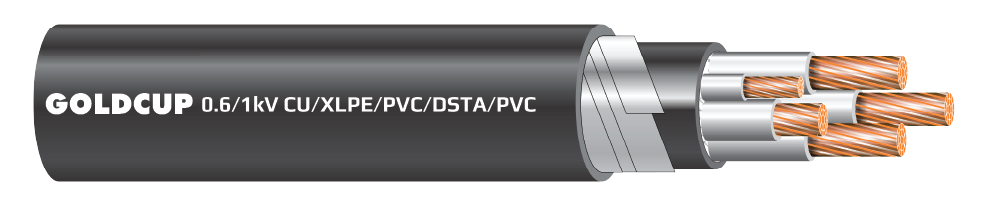

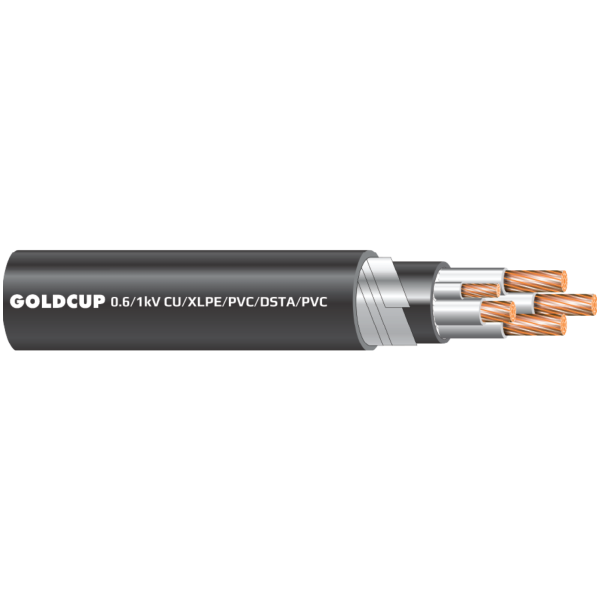

0.6/1 kV Five-Core Armoured Cable with Reduced Earth Conductor (Underground Cable) – Cu/XLPE/PVC/DSTA/PVC

Hotline

Description

01
02

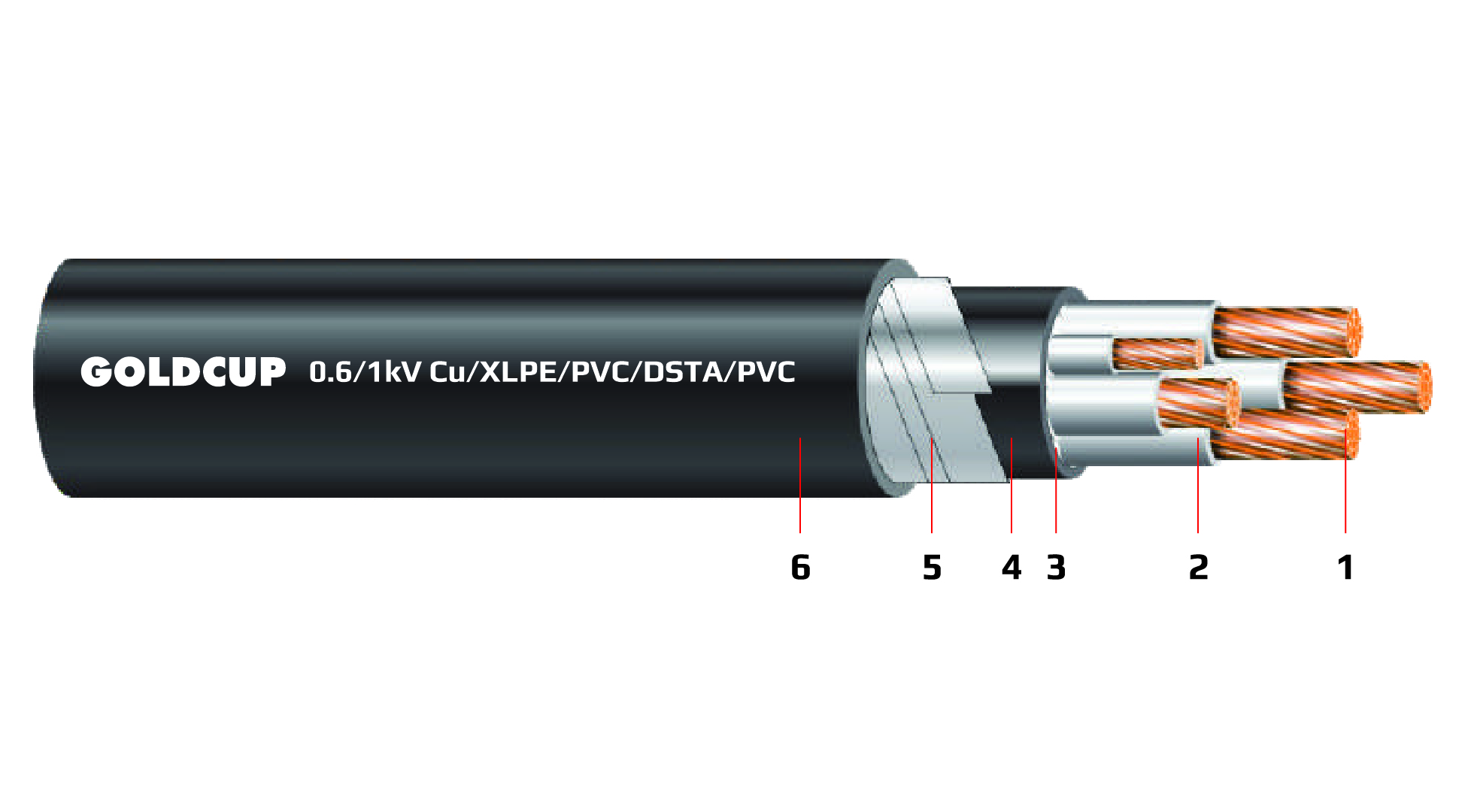

Caption
1/ Conductor:
Copper
2/ Inner Sheath:
PVC
3/ Insulation Layer:
XLPE
4/ Filler:
PP
5/ Outer Sheath:
PVC
6/ Armor Layer:
Double Steel Tape/DSTA
Specifications
Type:
Power Cables
Technical Specification:
Cu/XLPE/PVC/DSTA/PVC
Number of Cores:
4 + 1 smaller neutral
Core Type:
Solid
Voltage (V):
0.6/1 kV
Cross-section (mm2):
1.5; 2.5; 4; 6; 10; 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300
Applicable Standard:
TCVN 5935-1 (IEC 60502-1)
01.

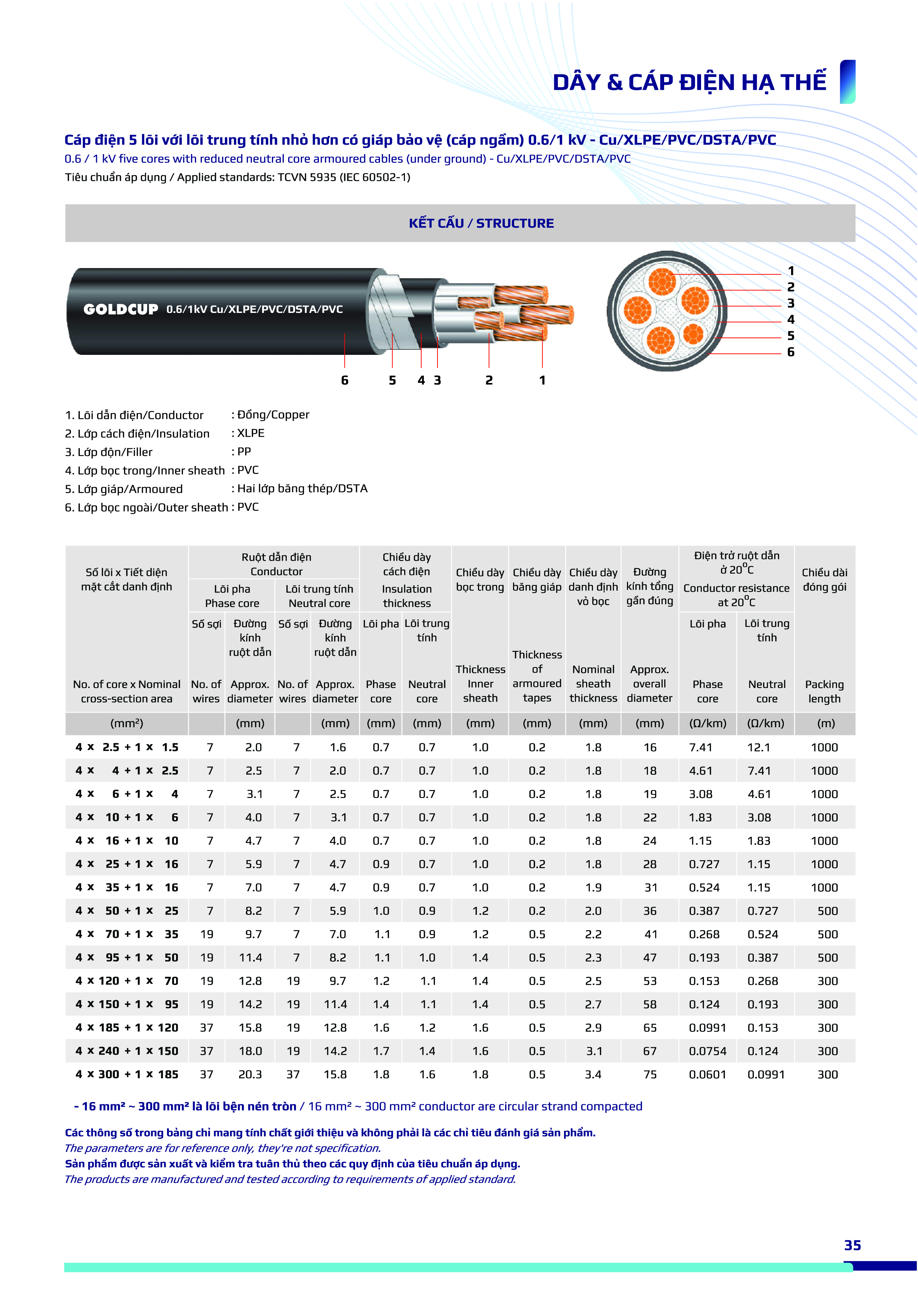

View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Armor Protection

Steel Tape Armor (DSTA)
Tiết diện

1.5, 10, 120, 150, 16, 185, 2.5, 240, 25, 300, 35, 4.0, 50, 6.0, 70, 95
Type

Power Cables, With Metal Armor (Underground Cable)
Conductor Material

Copper (Cu), Solid Core
Insulation Layer

PP, PVC, XLPE
Number of Cores

4 cores + 1 smaller neutral core
Voltage (V)

0.6/1 kV
