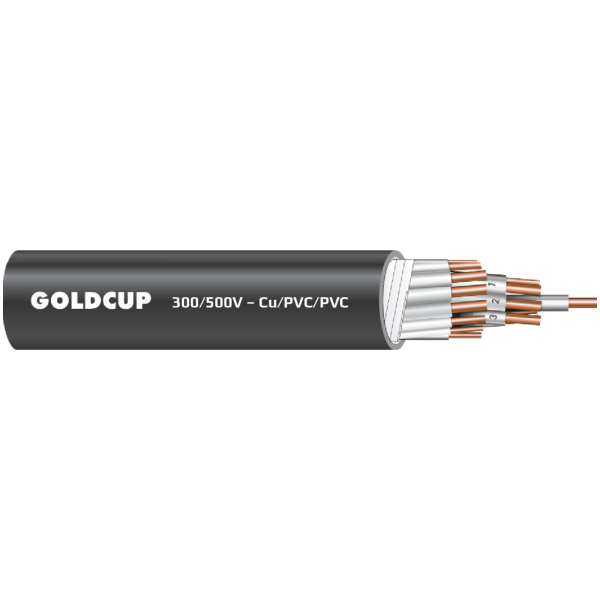

300/500V Control Cable, Flexible Core, without Shield – Cu/PVC/PVC

Hotline

Description

01
02

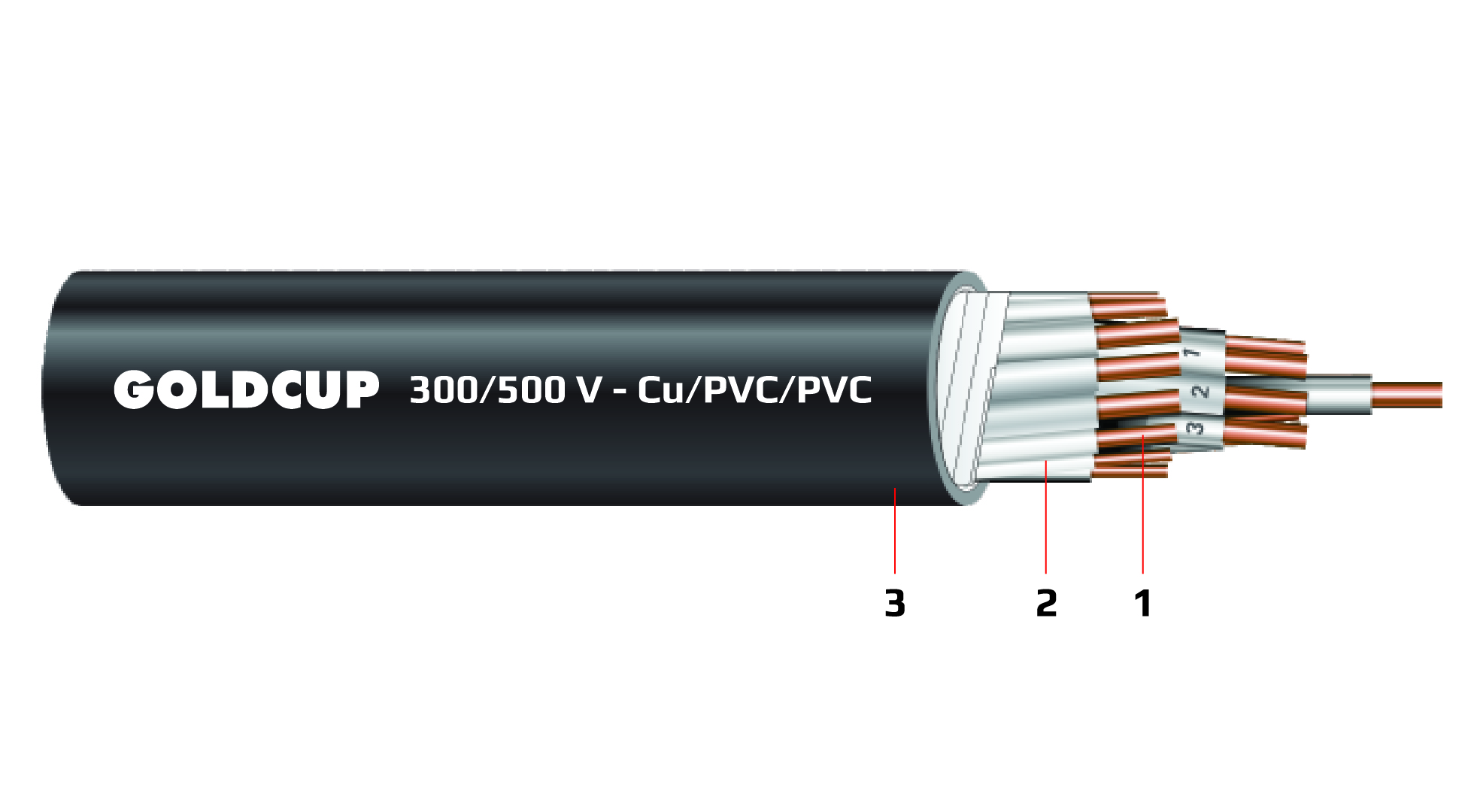

Caption
1/ Conductor:
Copper
2/ Insulation Layer:
PVC
3/ Outer Sheath:
PVC
Specifications
Type:
Cáp điều khiển & cáp thông tin tín hiệu
Technical Specification:
Cu/PVC/PVC
Number of Cores:
5; 7; 12; 27; 48
Core Type:
Flexible
Voltage (V):
300/500 V
Cross-section (mm2):
0.5; 0.75; 1.0; 1.5; 2.5
Applicable Standard:
TCVN 6610-7 (IEC 60227-7)
01.

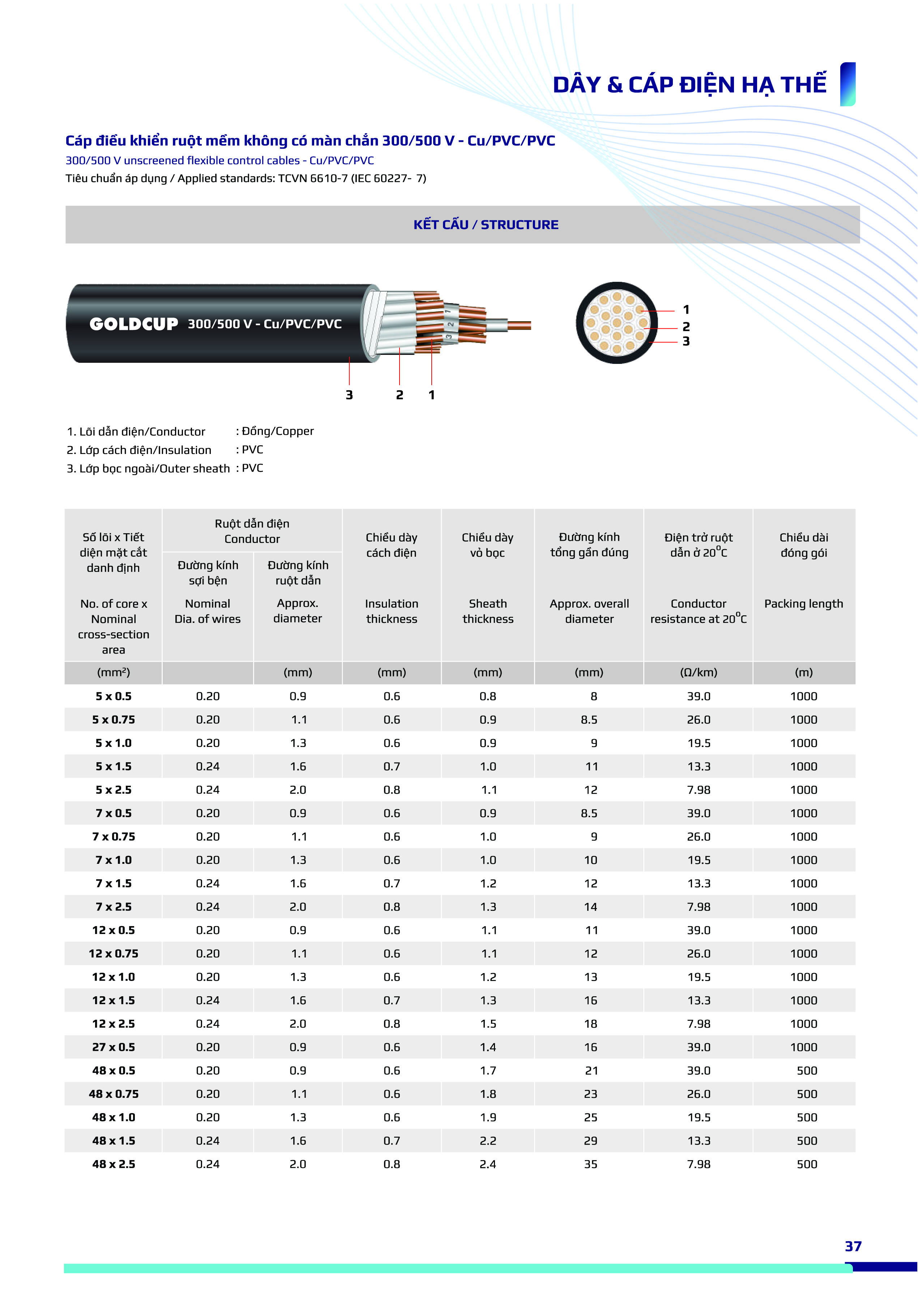

View detailed technical specifications (image)
02.
View Product Catalogue (PDF)

Additional information

Armor Protection

No Armor Protection
Voltage (V)

300/500 V
Insulation Layer

PVC
Number of Cores

>= 5 lõi
Tiết diện

0.5, 0.75, 1.0, 1.5, 2.5
Conductor Material

Copper (Cu), Flexible Core
